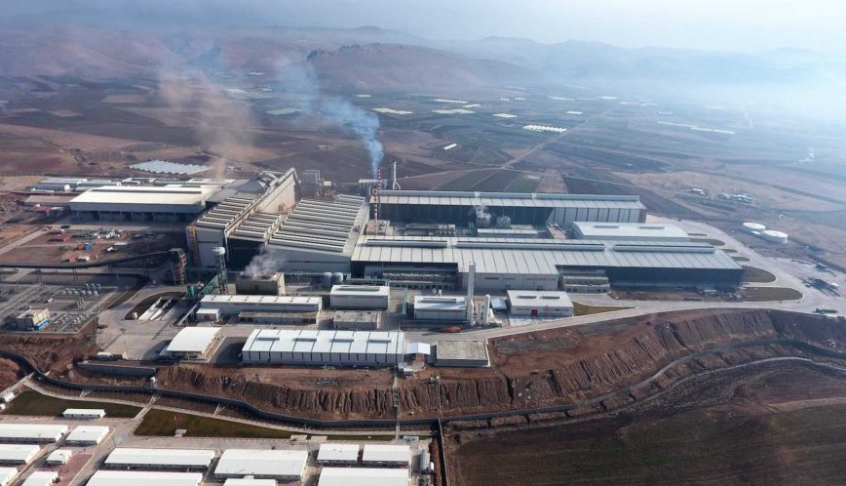

The facilities consist of;

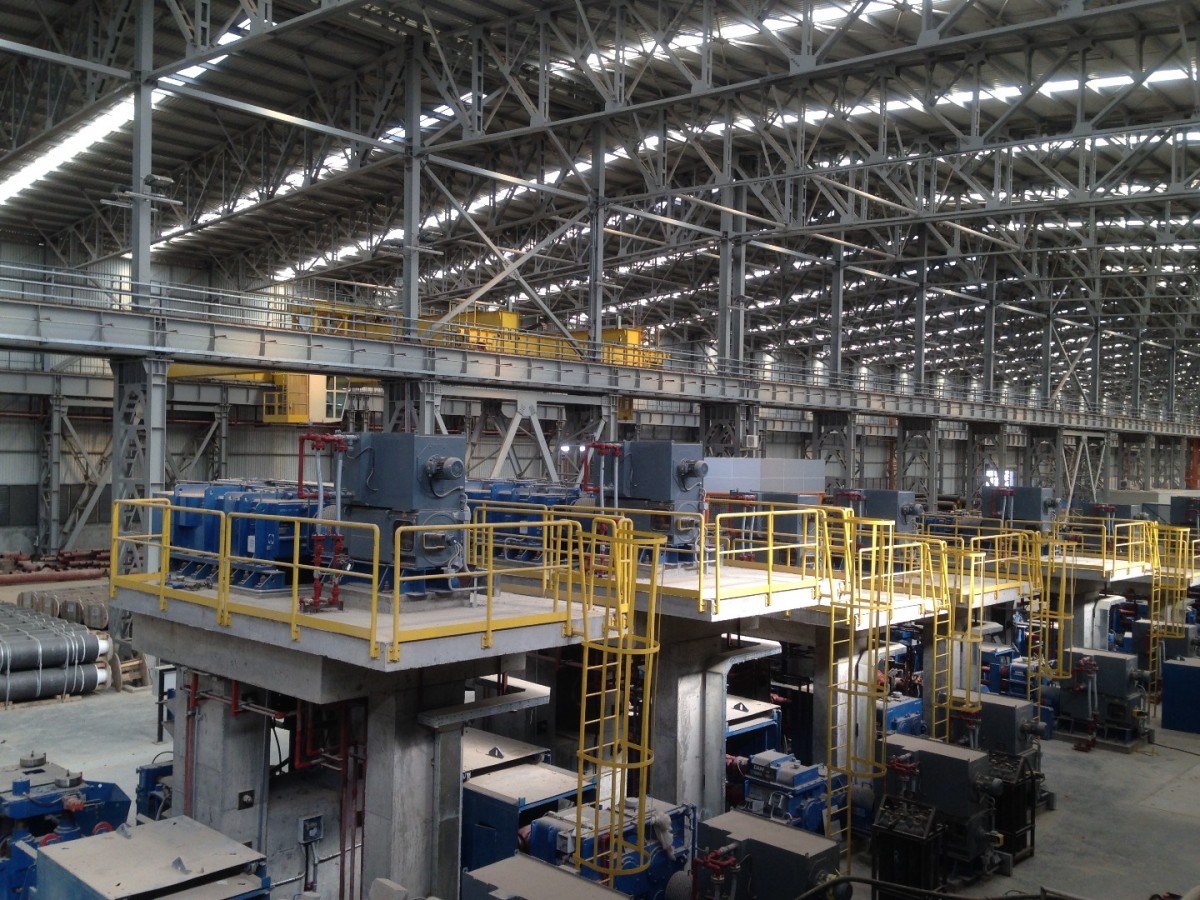

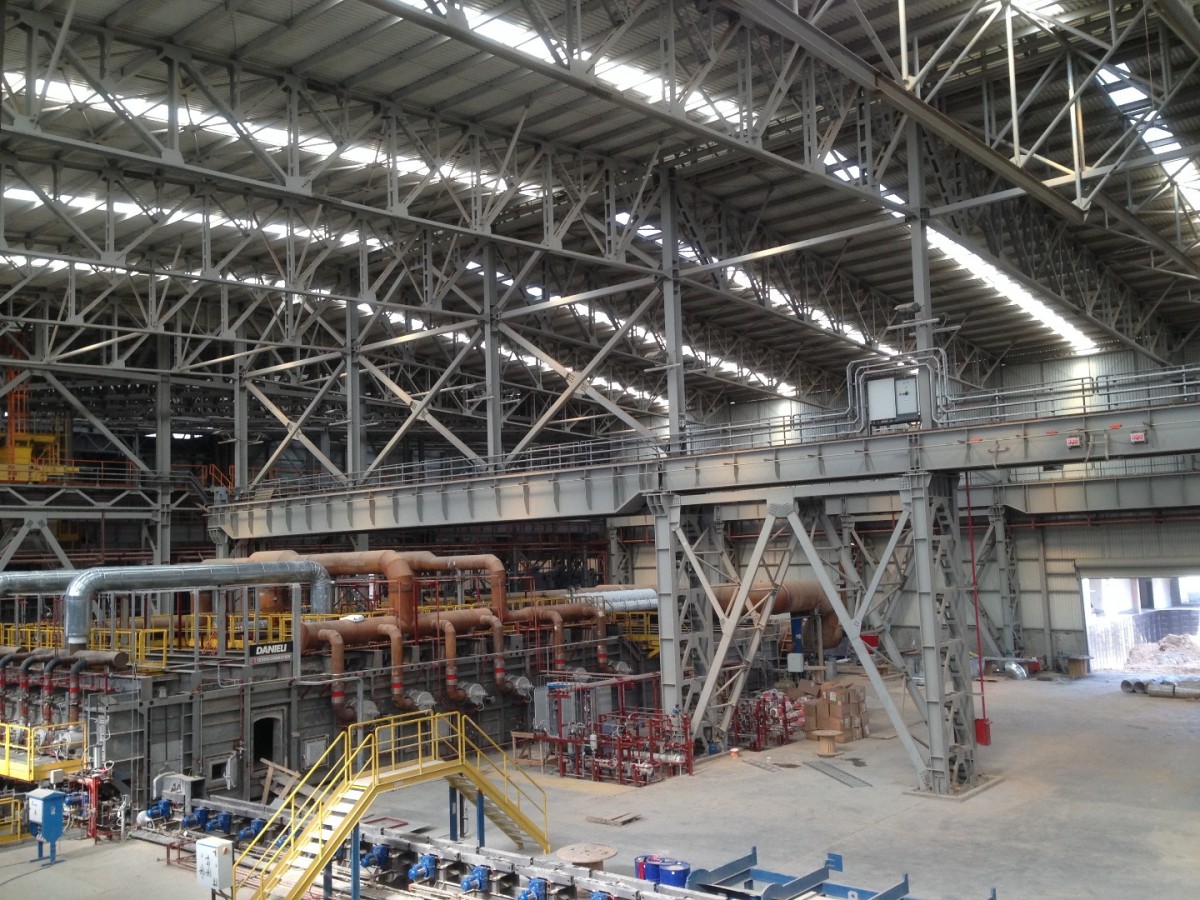

Steel Plant, Rolling Plant, Scrap Halls, Water Facilities, Pressurized Air Facility, Dust Collection Facility, Substation and Electrical Buildings, Management Building, Personnel Buildings etc.
Scope of Design services,
Medium Voltage (33kV & 6.3 kV) / LV distribution to facilities and buildings inclusive feeders from TEIAS TM/GIS 154kV/33kV Plant and provisions for future developments.
Medium Voltage Power Distribution
Emergency Generator Back-Up system
UPS Systems (Uninterrupted Power Supply)
MV, LV Short Circuit calculations
Power Factor Correction and Harmonic Filtration
MCC & Electrical Panel Details
Low Voltage Power Distribution (0.4kV Utility, Process&Mechanical Equipment)
Lightning Protection System
Internal and External Lighting
Emergency Lighting System
Security (CCTV, Card Access Control) Systems
Fire Detection and Alarm System
Emergency Announcement System
ICT-Telecommunications-Data Network System
Cable, Cable Raceway and Busbar Power Distribution
Site wide Electrical Site Infrastructure including setting sizing and section requirement for Manholes, Duct banks, Galleries, Utility tunnels, Pipe rack etc.
